Specifications
KV: 900KV
Weight(included wire): 60.4g
Dimension: Ф33.55*27.65mm
Interphase Resistance: 83.21mΩ
Input Volts: 24V
Peak Current: 43.86A
Max Watt: 1018W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Segmented bell
Shaft Diameter: 5mm
Shaft Protruding Length: 15.15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*5*5
Winding: Single Strand copper winding
Packing List

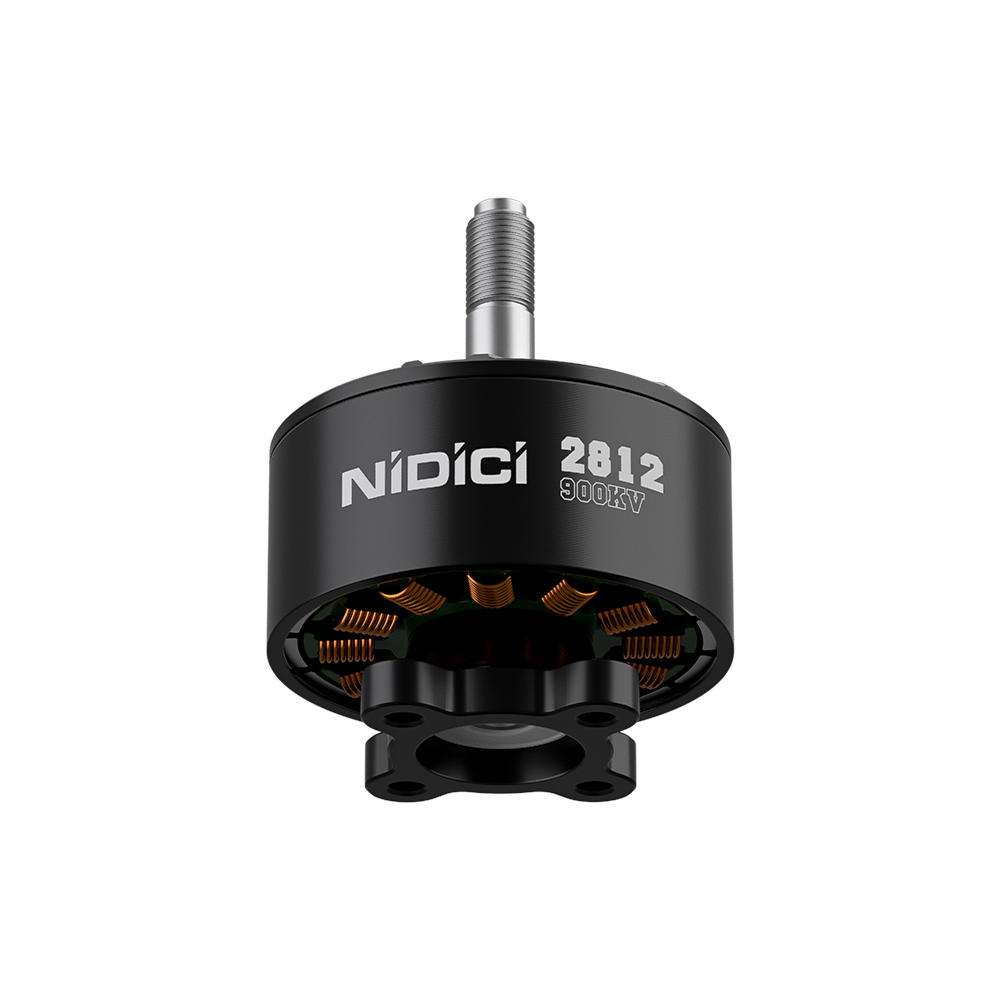

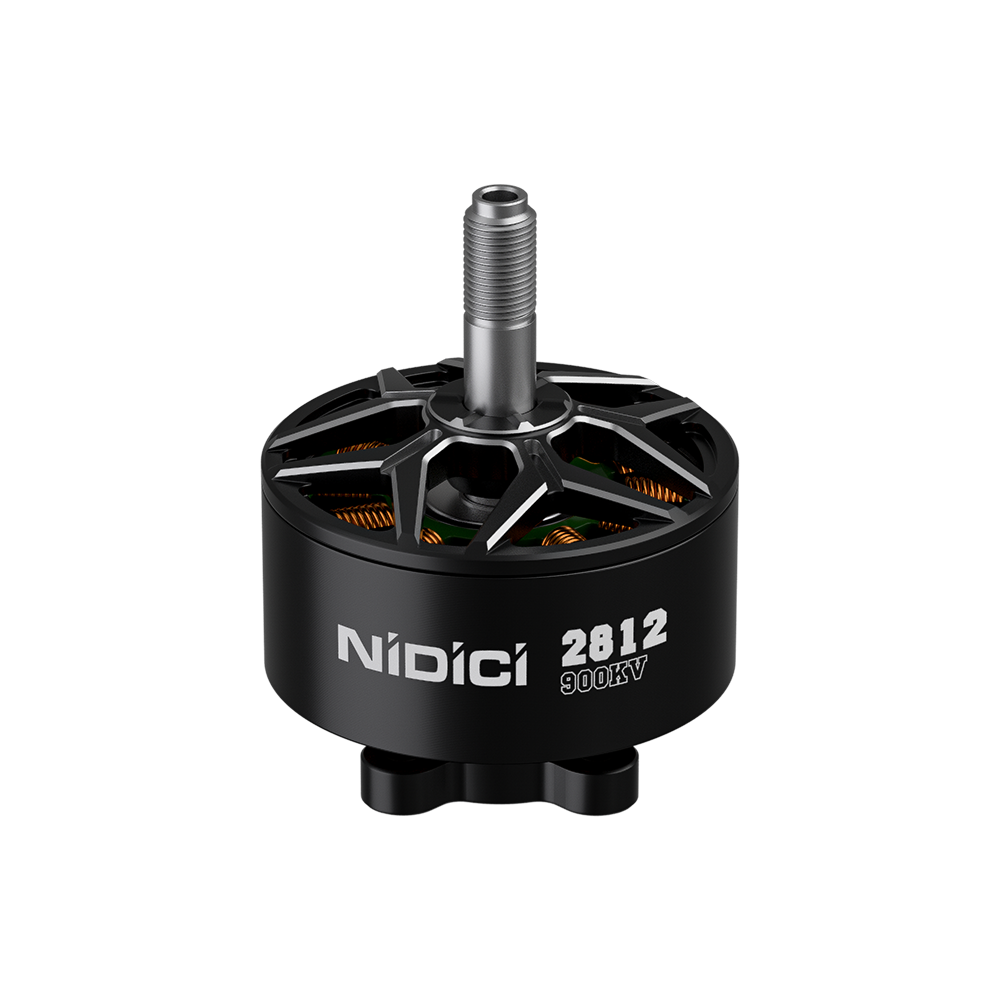

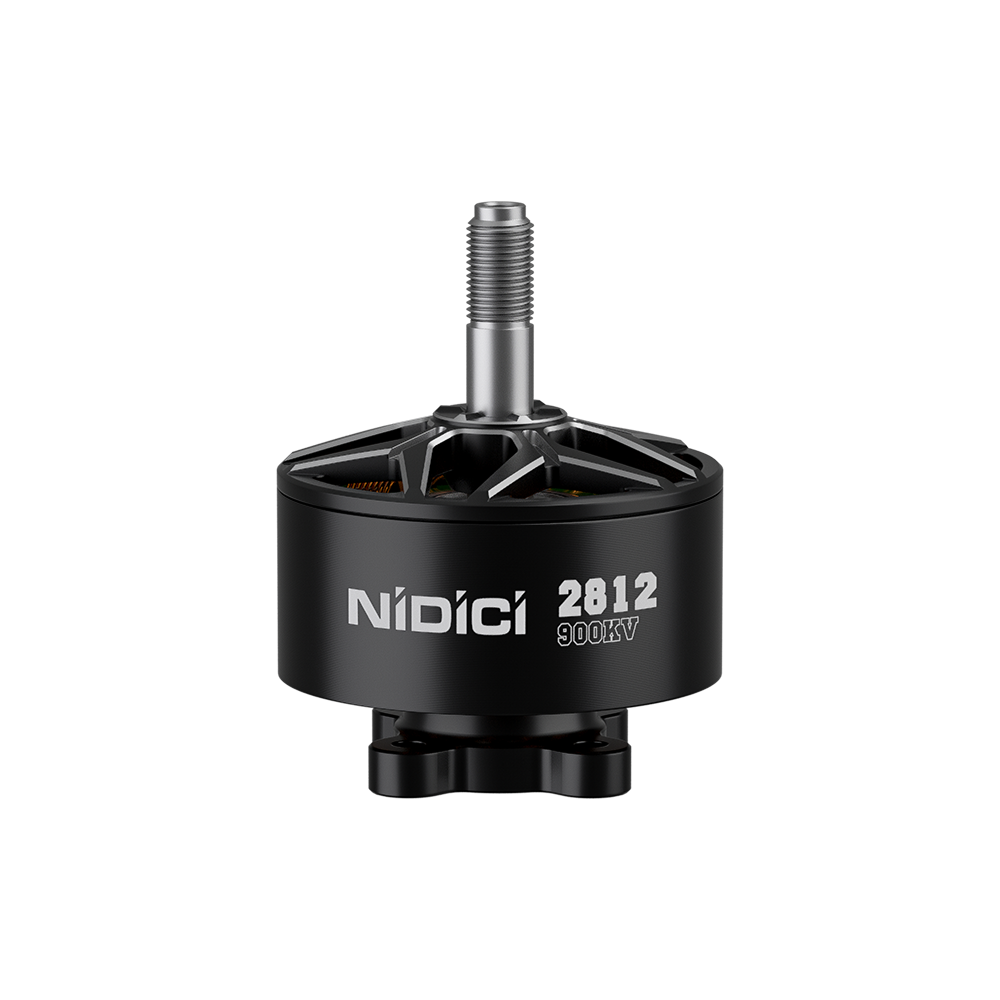

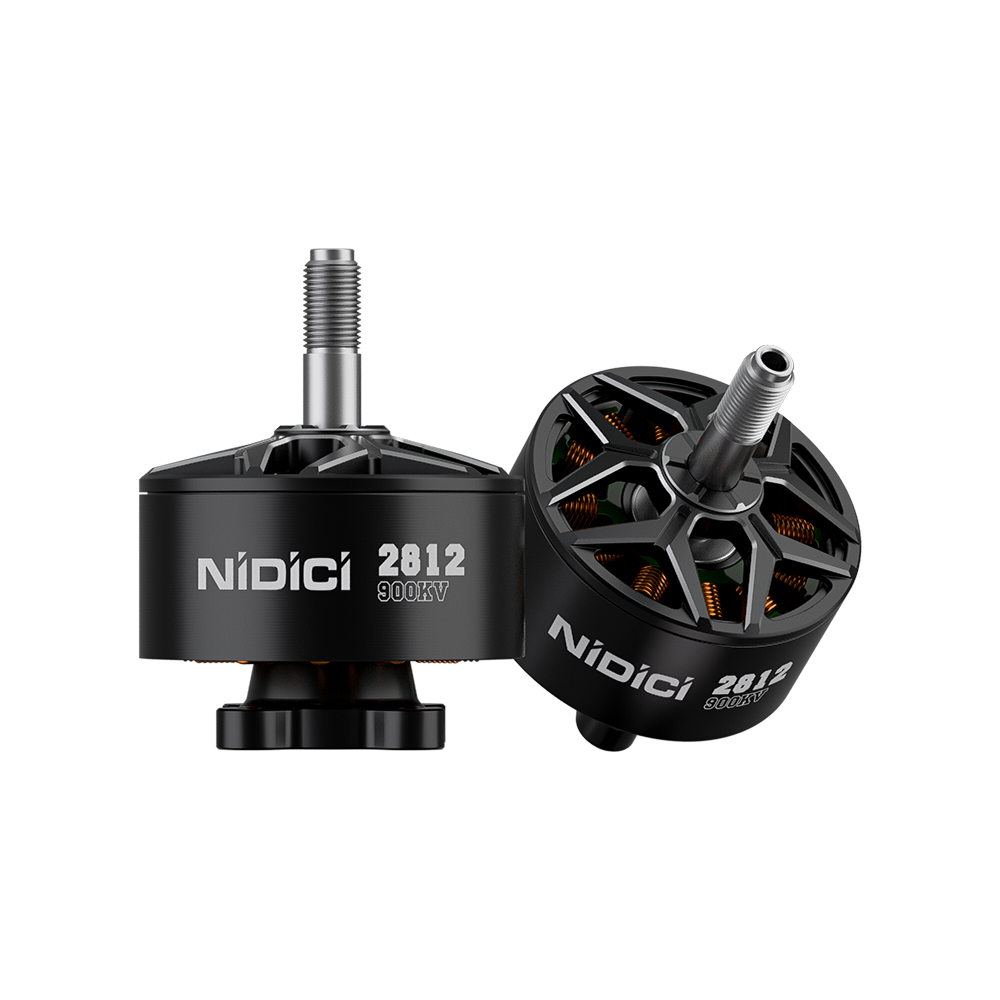

1 x NIDICI 2812 900KV Brushless Motor
4 x M3*10 screws
1 x M5 Flange Nut
