Specifications

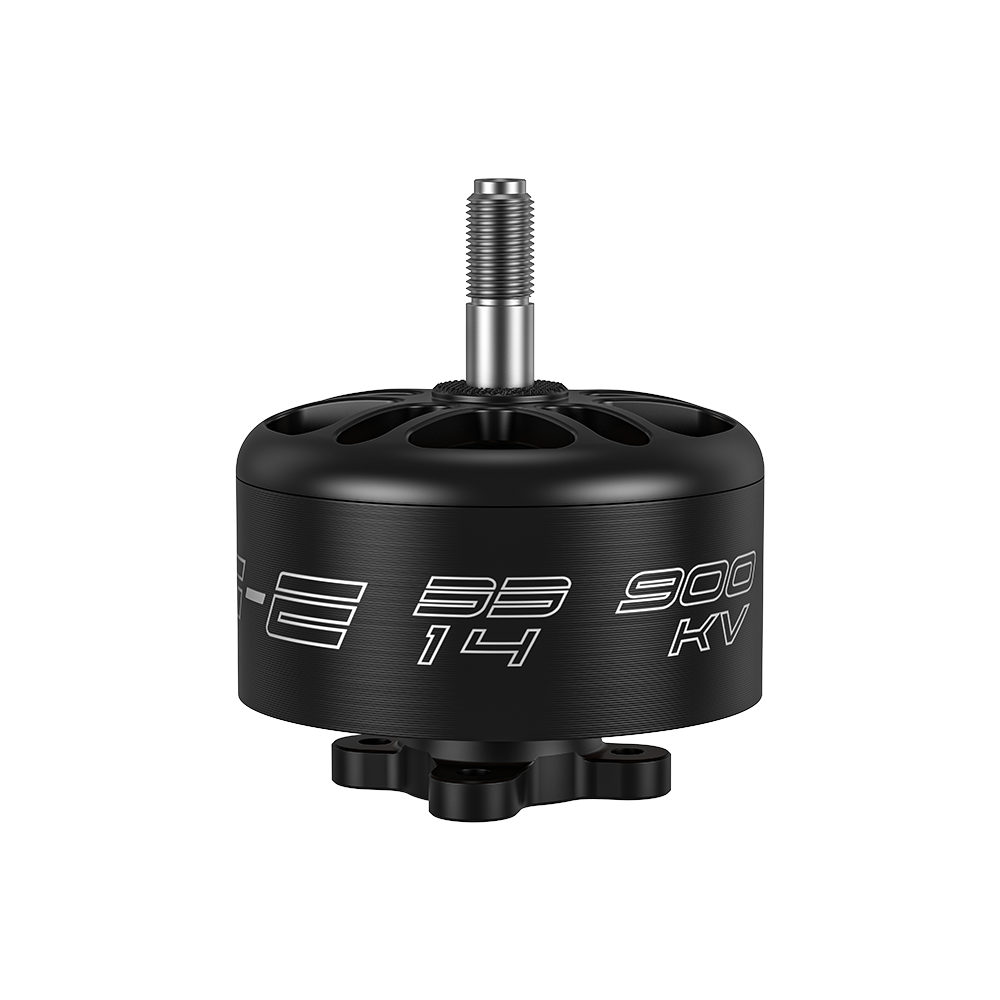

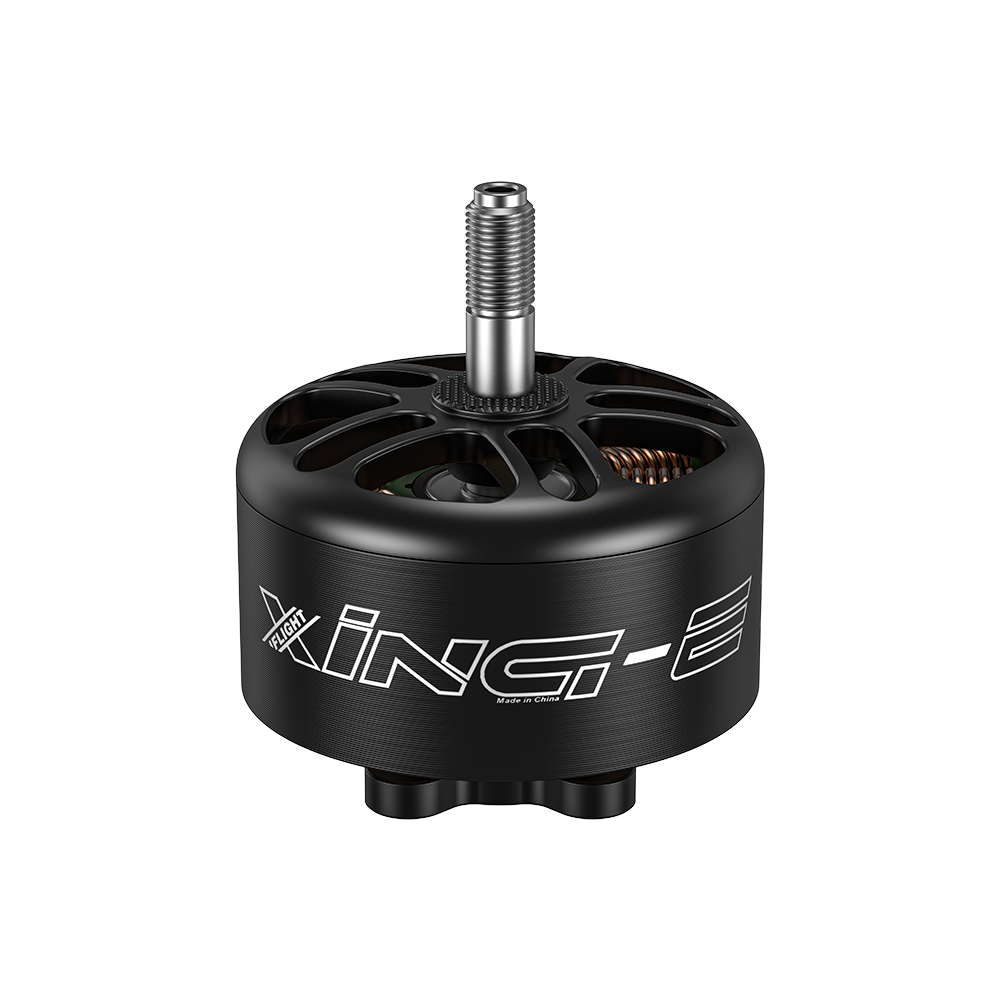

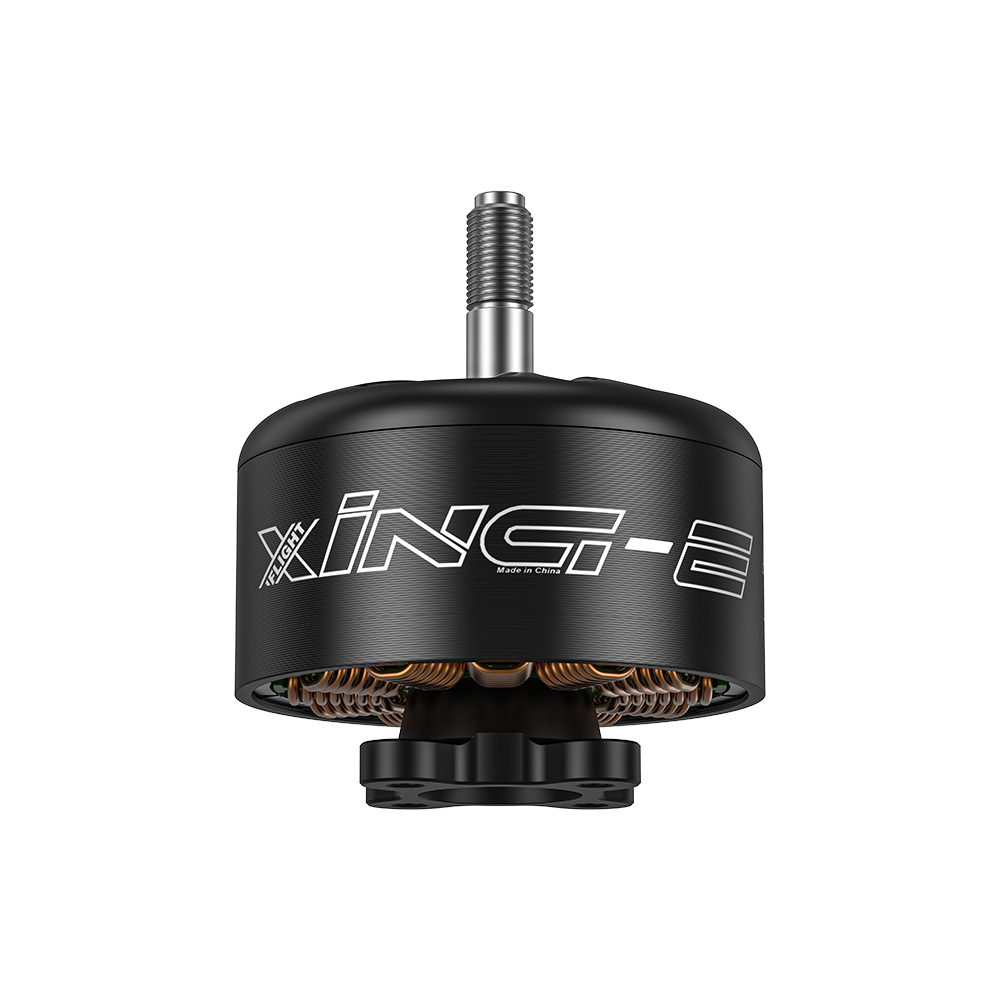

Model: XING-E 3314 Motor
KV: 900KV
Weight(included wire): 120g
Dimension: φ38.6*46.8mm
Interphase Resistance: 48.1mΩ
Input Volts: 24V
Peak Current: 58.48A
Max Watt: 1366.1W
Mounting Holes: 19*19 φ3mm
Shaft Diameter: 5mm
Rotor Specifications: Segmented bell
Shaft Protruding Length: 15mm / 17mm
Lead: 400mm/16AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*φ5*5
Winding: Single Strand copper winding
Packing List
1 x XING-E 3314 900KV Brushless Motor
4 x M3*10 screws
1 x M5 Flange Nut
