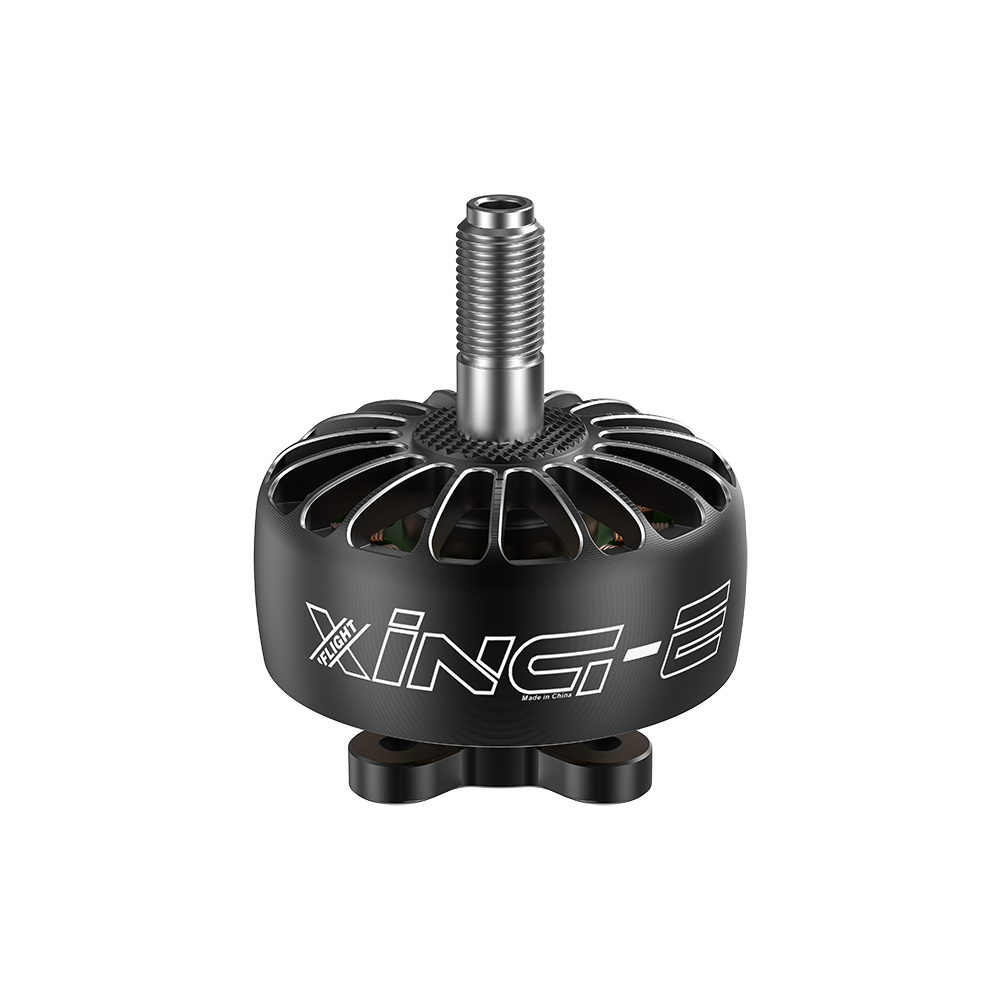

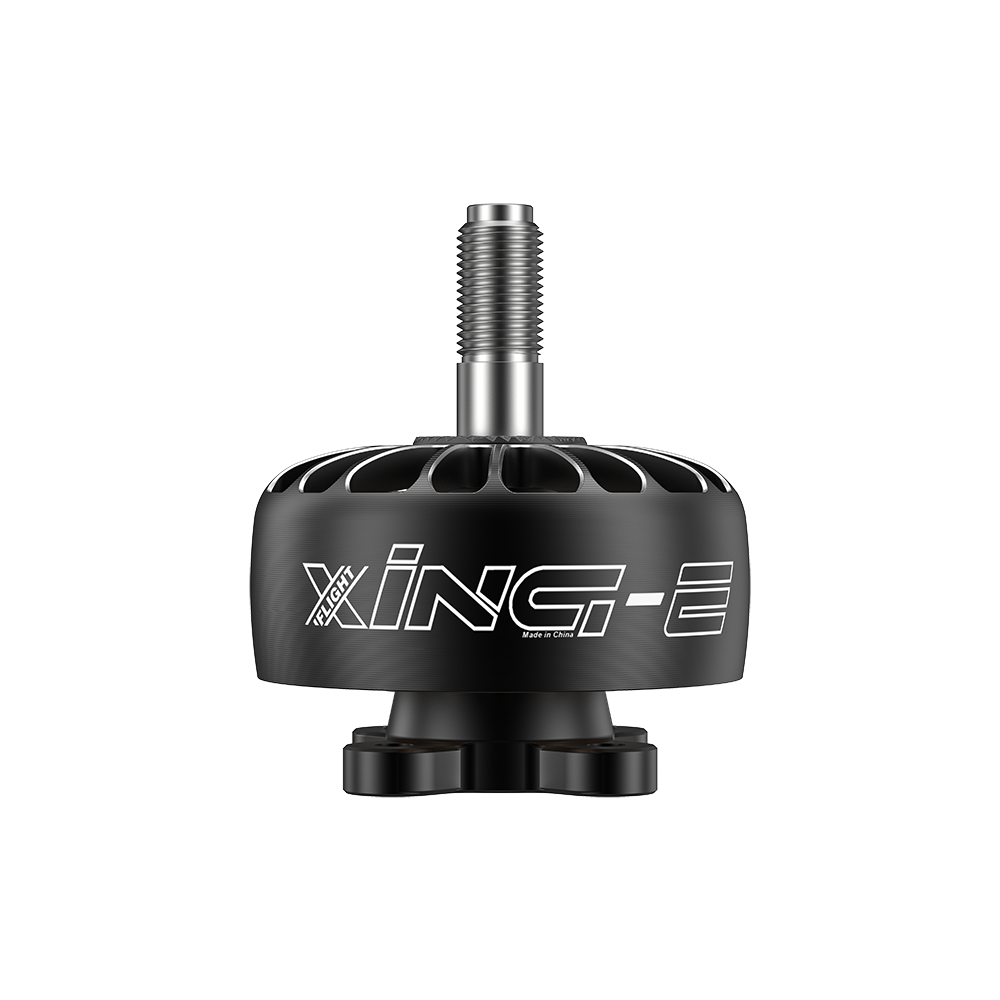

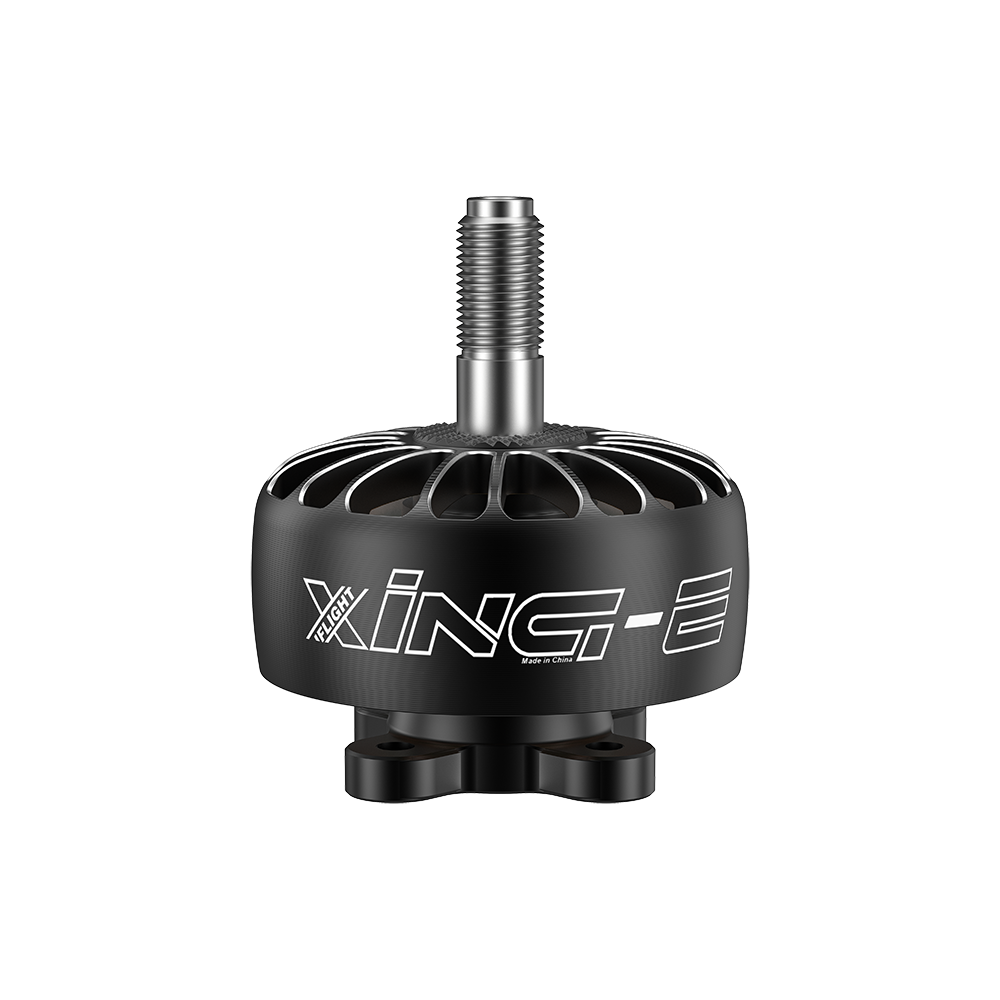

This 2207 sized motor features a High-strength 5mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features
High-strength 5mm Steel shaft
N52H High-temperature magnets, NSK bearings
16x16mm hole pattern
Single strand copper winding
Hex bolt shaft set screw
Specifications
Model: XING-E Pro 2207 Motor
KV: 1800KV / 2450KV / 2750KV
Weight(included wire): 33.8g
Dimension: φ28.5*33.1mm
Interphase Resistance: 81.5mΩ / 46.8mΩ / 41mΩ
Peak Current: 35.22A / 42.63A / 50.03A
Max Watt: 845.3W / 682.1W / 800.5W
Shaft Diameter: 5mm
Shaft Protruding Length: 13.5mm
Configuration: 12N14P
Mounting Holes: 16*16 φ3mm
Packing List
1 x XING-E Pro 2207 motor
