Features
5mm titanium alloy shaft, our strongest prop shaft ever!
Crash resistant 7075 aluminum bell
Smooth and long-lasting NSK 9x4x4 bearings
Center slotted N52H curved arc magnets
XING O-ring bearing gap protection
Motor wires protector
Dynamically balanced
Specification
KV: 1750KV / 2750KV / 2050KV
Weight(included wire): 30.5g
Dimension: φ29*32.25mm
Interphase Resistance: 74.23mΩ(1750KV/2750KV) / 56.3mmΩ(2050KV)
Input Volts: 25.2V (1750KV/2050KV) / 16.8V (2750KV)
Peak Current: 36.03A(1750KV)/ 46.05A (2750KV)/ 49.53A(2750KV)
Max Watt: 898W(1750KV) / 706.9W(2750KV) / 1166.4W(2750KV)
Mounting Holes: 16*16 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 13.5mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ9*φ4*4
Winding: Single Strand copper winding
Packing List

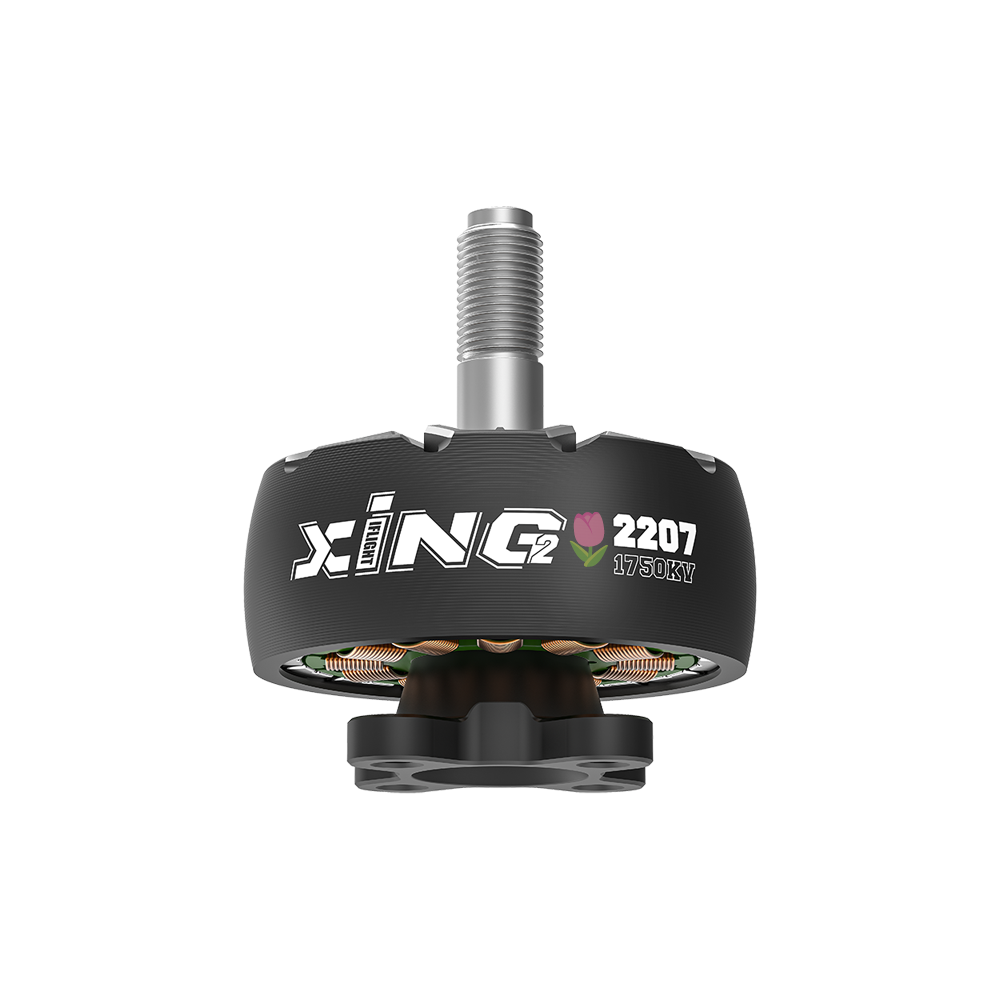

1 x XING2 2207 Black Brushless Motor
4 x M3*10 screws (1750KV)
4 x M3*7 screws(2750KV)
4 x M3*9 screws (2050KV)
1 x M5 Flanged Nylon Insert Lock Nut
