Features
5mm titanium alloy shaft, our strongest prop shaft ever!
Crash resistant 7075 aluminum bell
Smooth and long-lasting NSK 11x5x5 bearings
Center slotted N52H curved arc magnets
XING O-ring bearing gap protection
Motor wires protector
Dynamically balanced
Specifications

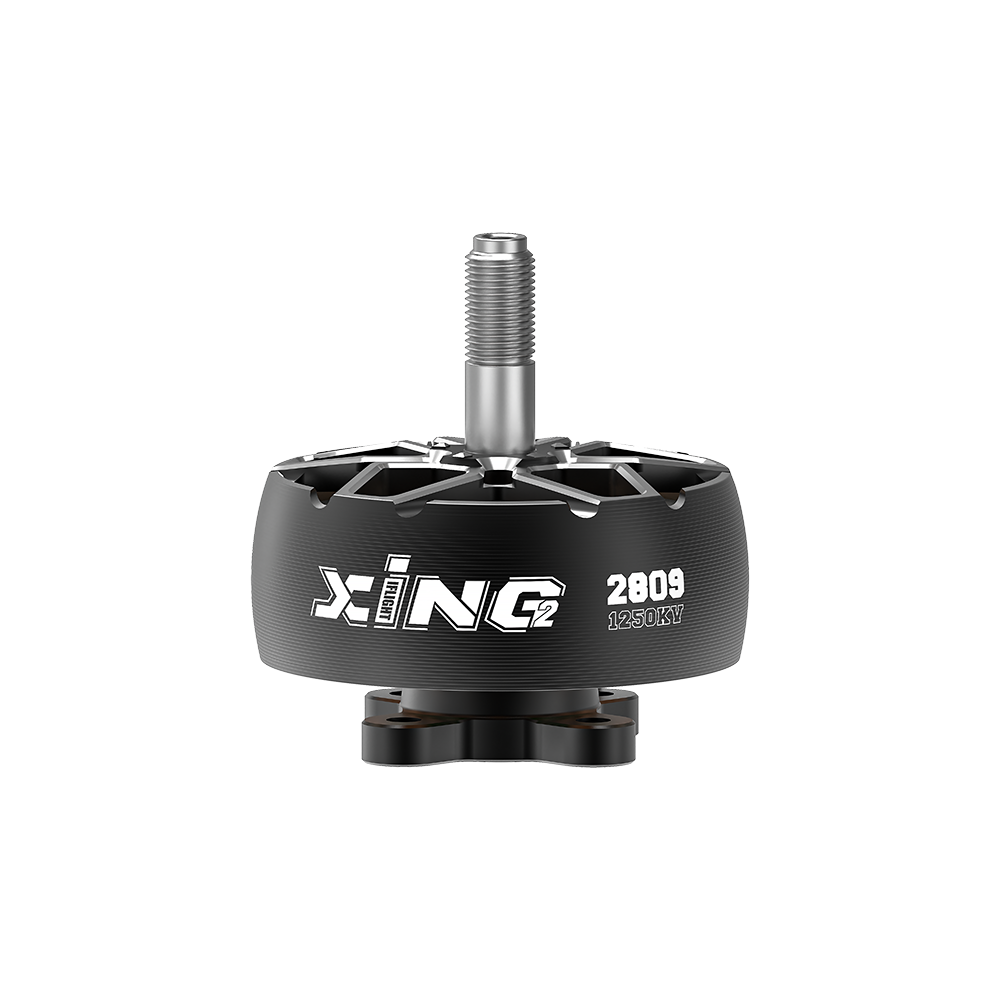

Model: XING2 2809 Motor
KV: 800KV/1250KV/1600KV
Weight(including wire): 61.4g/ 60.7g/59.9g
Dimension: φ35.33*36.7mm
Interphase Resistance: 127mΩ/65.46mΩ/47mΩ
Input Volts: 24V
Peak Current: 25.63A/50A/62.24A
Max Watt: 610.3W/1145W/1456.4W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ11*φ5*5
Winding: Single Strand copper winding
Packing List
1 x XING2 2809 Brushless Motor
4 x M3x10 screws
1 x M5 Flange Nut
