Features
5mm titanium alloy shaft, our strongest prop shaft ever!
Crash resistant 7075 aluminum bell
Smooth and long-lasting NSK 11x5x5 bearings
Center slotted N52H curved arc magnets
XING O-ring bearing gap protection
Motor wires protector
Dynamically balanced
Designed for 7/8/9 inch Cinelifter.
Specification
KV: 900KV / 1250KV / 1600KV
Weight(included wire): 77g(900KV/1250KV) / 76.4g(1600KV)
Dimension: φ38.72*39.6mm
Interphase Resistance: 78mΩ / 43mΩ / 36mΩ
Input Volts: 33.6V (900KV)/ 4~6S(1250KV)/25.2V(1600KV)
Peak Current: 65.54A / 84.68A / 65.06A
Max Watt: 2143.8W / 1976.4W / 1550.4W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ11*φ5*5
Winding: Single Strand copper winding
Packing List

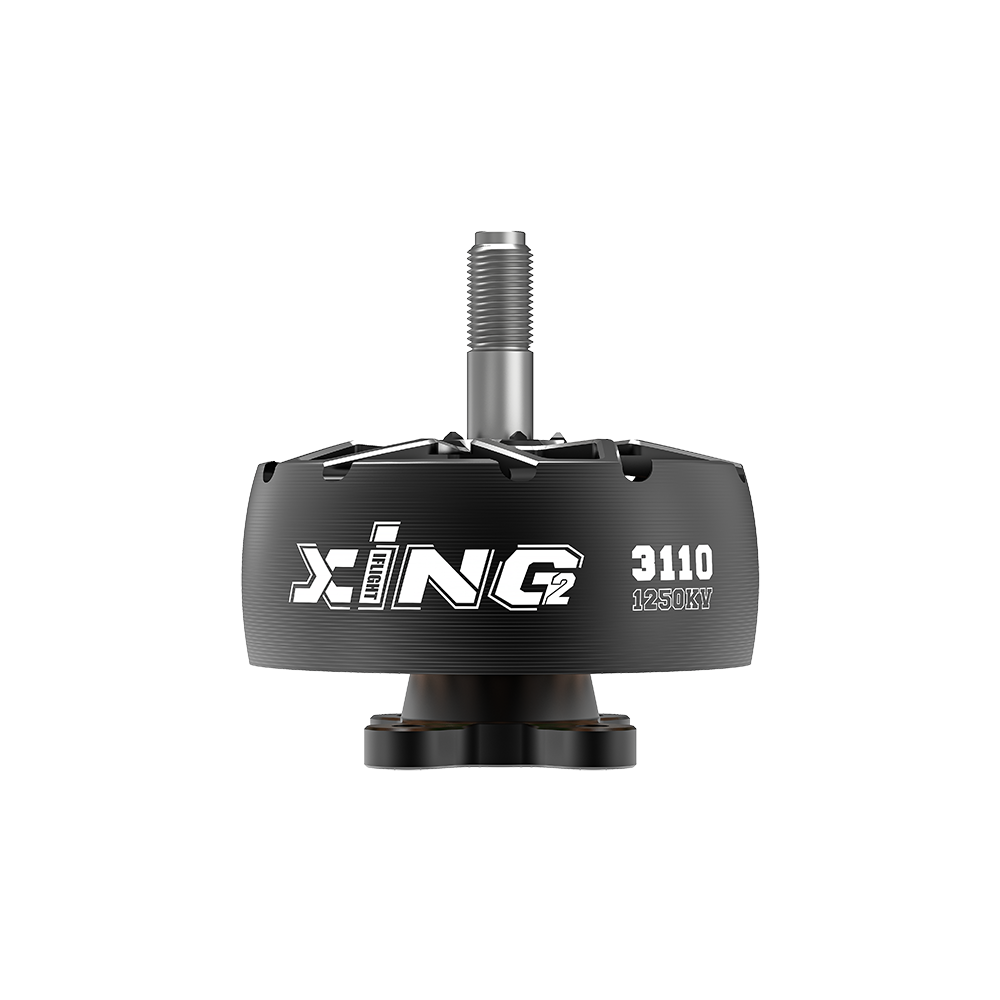

1 x XING2 3110 Brushless Motor
4 x M3x10 screws
1 x M5 Flange Nut
