Specifications

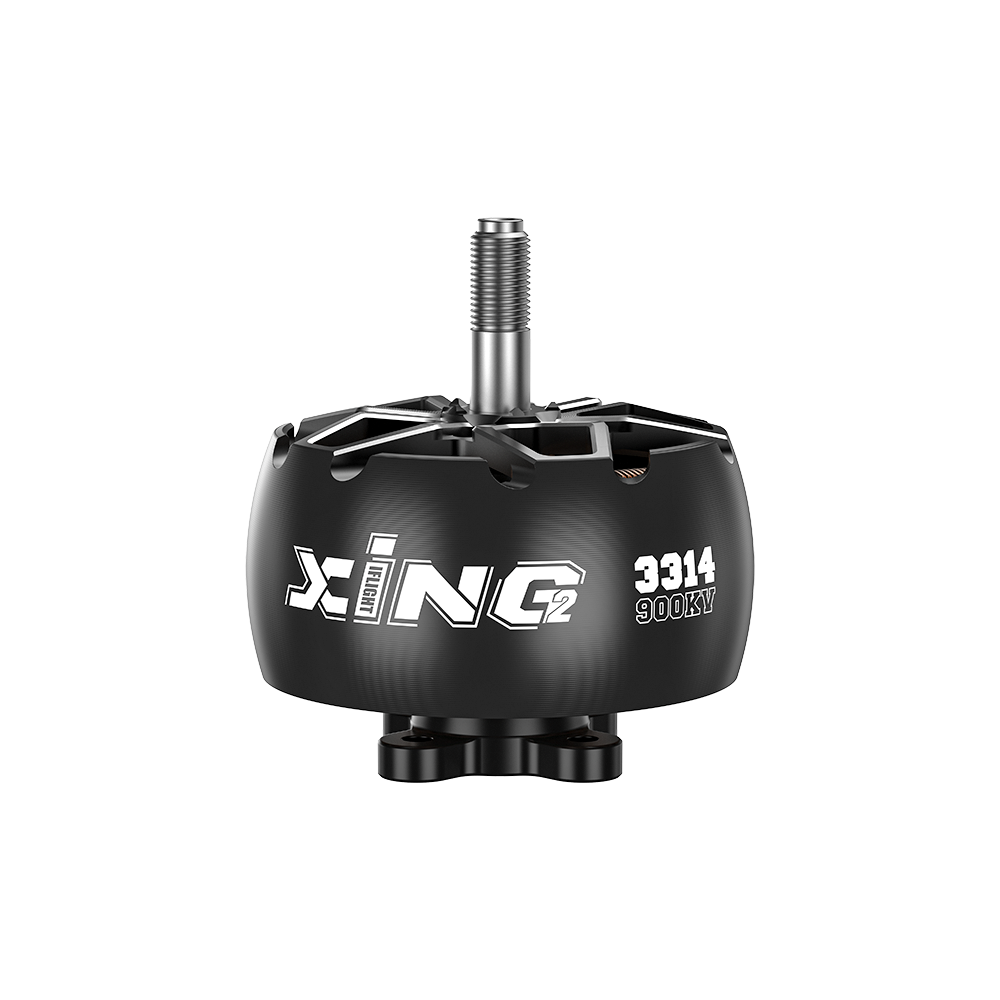

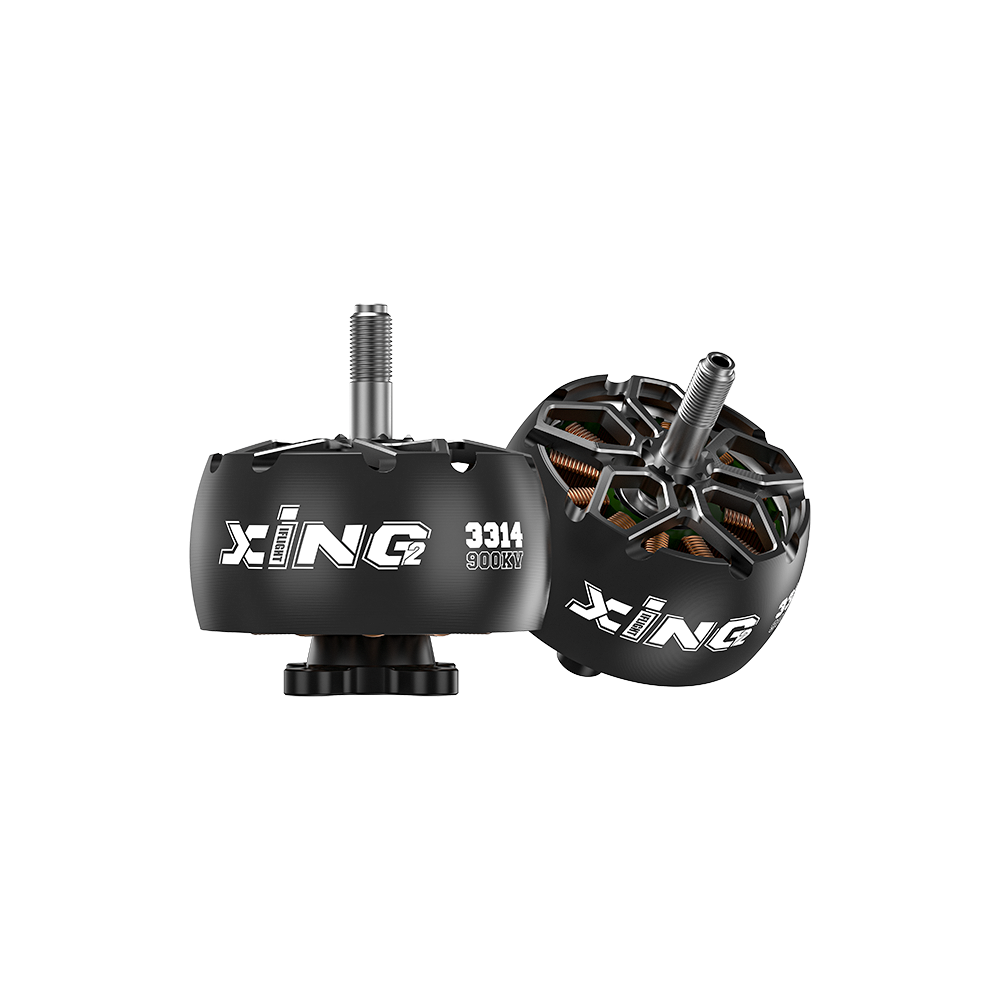

Model: Xing2 3314
KV: 900KV
Weight(included wire): 129g
Dimension: φ41.9*46.8mm
Interphase Resistance: 36.5mΩ
Input Volts: 24V
Peak Current: 58.48A
Max Watt: 1366.1W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 17mm
Lead: 400mm/16AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NMB
Bearing Specification: φ11*5*5
Winding: Single Strand copper winding
Packing List
1 x XING2 3314 Brushless Motor
4 x M3x12 screws
1 x M5 Flange Nut
